    Micro-perforated Acoustic Panel Elegant Solution for Noise Reduction

    Ask Lasest Price
    Brand Name : WINEGO
    Model Number : PAV2.2/0.5-12/15
    Certification : CE,FSC,France A+
    Payment Terms : TT :50% deposit Balance before shipment
    Supply Ability : 10000sqm per week
    Delivery Time : 2 weeks
    • Product Details
    • Company Profile

    Micro-perforated Acoustic Panel Elegant Solution for Noise Reduction

    Micro-perforated Acoustic Panel Elegant Solution for Noise Reduction


    Description:


    The micro-perforated acoustic panel offers a high-performance acoustic solution that merges practicality with stylish aesthetics. Featuring front-facing micro holes (0.4 to 1mm) and rear perforations, it functions as a Helmholtz resonance system, effectively reducing noise in medium to low frequencies. Constructed from durable high-density board, it comes in a range of finishes to meet different design requirements. Ideal for applications in both residential and commercial spaces, this panel creates a calm and visually appealing environment. Its eco-conscious design and fire-resistant properties make it particularly suitable for contemporary sustainable projects. Whether enhancing a cozy home atmosphere or refining acoustics in a dynamic office, this panel ensures top-notch sound control and aesthetic harmony.


    Feature:


    Effective Sound Absorption: Helmholtz resonance system for superior noise control.


    Elegant Finishes: Multiple options to enhance any decor.


    Eco-Friendly: Safe and sustainable materials.


    Durable Construction: Built to withstand physical impact.


    Versatile Application: Suitable for walls and ceilings.



    Specifications:

    NAMESuper Micro-Perforated Acoustic Panel
    FINISHVeneer/Melamine/HPL fire-proof
    BASE MATERIALSMDF/A grade MGO/Solid wood
    MODEL

    PAV2.2/0.5-12/15

    Size

    W590/1200*L590/1200/2420*T15/18mm

    environmental protectionE1
    warranty2 years
    INSTALLKeel/Nail gun
    MIN.ORDER100 SQM
    PACKAGE DETAILS

    W200mm*L2400mm*T 15mm: 6 pieces per pack,the size of the single package is W230m*L2430mm*T130mm,27.75kg per pack.

    W1200mm*L1200mm*T 15mm: 4 pieces per pack,the size of the single package is W1225mm*L1225mm*T100mm,48.8kg per pack.

    LOGO service for big order

    Delivery time2 weeks
    Original placeGuangzhou,china
    Payment term

    TT :50% deposit
    Balance before shipment

    Additional serviceOEM

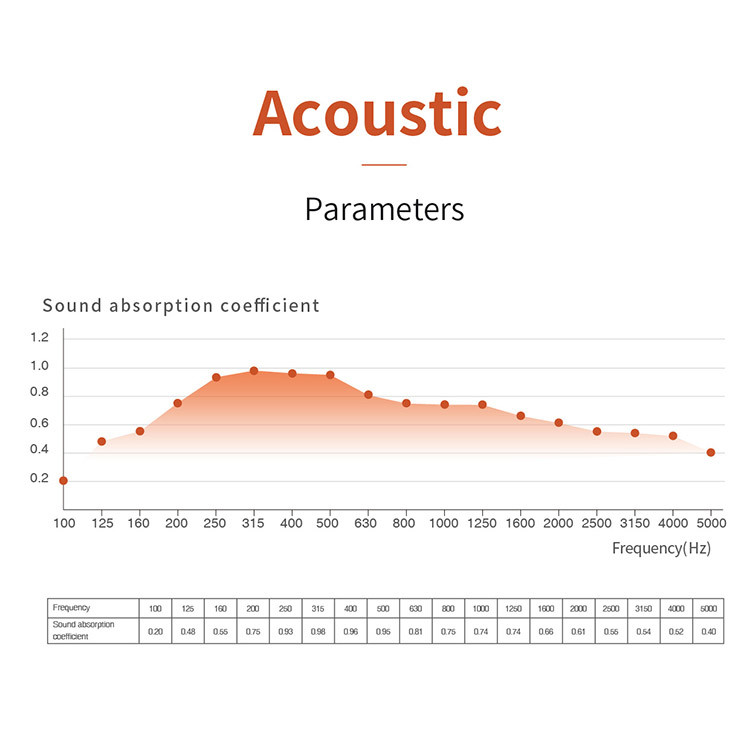

    NRC0.8
    CertificateCE,FSC,France A+
    BrandWINEGO
    Project Solution CapabilityProject Design,3D model design,Graphic design,Material Production,Shipping and Deliver
    Design StyleModern
    After-sale ServiceOnline technical support,Return and Replacement,Installation Instruction



    Micro-perforated Acoustic Panel Elegant Solution for Noise ReductionMicro-perforated Acoustic Panel Elegant Solution for Noise ReductionMicro-perforated Acoustic Panel Elegant Solution for Noise ReductionMicro-perforated Acoustic Panel Elegant Solution for Noise ReductionMicro-perforated Acoustic Panel Elegant Solution for Noise ReductionMicro-perforated Acoustic Panel Elegant Solution for Noise Reduction

    Wall Installation Process:

    Wood Batten Wall System Installation

    Step 1: Install the wood battens securely on the wall, ensuring they are perfectly level. The spacing between battens should be maintained between 400-600mm.

    Step 2: Fill the gaps between the battens with fiberglass acoustic wool to improve soundproofing.

    Step 3: Fix the perforated acoustic panels onto the battens using a nail gun and insert the wooden slats into the grooves along the sides.

    Step 4: Continue with the installation while leaving a 3-5mm gap between adjacent panels. Nail placement should be along the edges.

    Step 5: Inspect the installation to ensure stability and proper alignment.

    Suspended Ceiling System Installation Options

    Method A: Exposed Ceiling SC-E

    1. Mount the L-hanger on the suspension rod and fix the T-type main tee. Clip the cross tee in place and secure the corners.

    2. Proceed with the exposed ceiling installation.

    3. Inspect and finalize the ceiling installation.

    Method B: Tegular Ceiling SC-T

    1. Attach the L-hanger to the suspension rod, secure the T-type main tee, and insert the cross tee, ensuring the corners are locked.

    2. Fit the tegular ceiling panels into position.

    3. Complete and review the installation.

    Method C: Concealed Ceiling SC-C

    1. Fix the L-hanger with suspension rods, install the main tee, and clip the cross tee securely in place while reinforcing the corners.

    2. Carefully place the concealed ceiling panels.

    3. Finish and inspect the final result.
